Hengsheng Aluminium Plate-fin Hydraulic Oil Heat Exchanger Hydraulic Oil Cooler for Road Maintenance Vehicles Radiator for Harvester Lubricating Oil Radiator Heat Exchanger for Crusher Air-cooled Oil
products specifica
| Price | ￥1900-￥2100/$300-$330 |
| Brand | Hengsheng |
| Type | air-cooled oil cooler |
| Structure | aluminium plate fin type (Aluminum plate fin type) |
| Model | LQF1-45TZ |
| Processing customisation | Yes |
| Suitable for models | a variety of vehicles hydraulic, hydraulic transmission system, lubrication system cooling (Cooling of hydraulic, hydraulic transmission system and lubrication system of various vehicles) |
| Temperature control range (Oil temperature control range) | 50 ℃ -60 ℃ fan power |
| Supply | DC DC24V 8.5A (SPAL import fan) |
| Weight | 26.5Kg |
| Heat dissipation area | 19 square metres |
| Working pressure | ≤2.6MPa |
| Available for sale | nationwide |
about hengsheng
Air Cooling Oil Cooler: A Quality Choice for Xinxiang Hengsheng Heat Exchange Equipment
In modern industry, oil temperature control is crucial. As an efficient heat exchange equipment, air cooling oil cooler can effectively reduce the oil temperature and ensure the normal operation of the equipment. Xinxiang Hengsheng Heat Exchange Equipment Co., Ltd. focuses on the research, development and production of high-performance air-cooled oil coolers, and is committed to providing customers with high-quality products and services.
Since its establishment, Xinxiang Hengsheng Heat Exchange Equipment Co., Ltd. has always adhered to the core of technological innovation, combined with advanced production technology and strict quality management system to ensure that each air cooling oil cooler can meet international standards. Our products are widely used in many industries such as machinery, chemical industry, metallurgy and so on, and are trusted and praised by customers.
The design concept of air cooling oil cooler is to take away the heat from the oil through air flow, so as to achieve efficient heat dissipation effect. The equipment has the advantages of compact structure, easy installation, simple maintenance, etc., and can work stably in various harsh environments. Xinxiang Hengsheng's air-cooled oil coolers are made of high-quality materials, which are corrosion-resistant and high-temperature-resistant, ensuring the long-term service life of the products.
In addition, our technical team provides customised services to design the most suitable air cooling oil cooler solutions according to customers' specific needs. Whether it is a small device or a large industrial system, we can provide professional support and service.
In short, by choosing air cooling oil cooler from Xinxiang Hengsheng Heat Exchange Equipment Co., Ltd, you will get efficient and reliable products and high quality after-sales service. We look forward to working with you to promote the development and progress of the industry.
Model Description
Structure and dimensions
Technical parameters
Quick Selection
According to the following instructions can be quickly selected:
1. According to the size of the oil flow to choose the cooler oil port form
In principle, the oil flow through the cooler ≤ 300L / Min, as far as possible to choose the threaded port that is the LQF1 series, in order to make the structure simple, fast loading and unloading; when the oil flow > 300L / Min, should be selected flange port that is the LQF2 series, in order to reduce the oil flow through the cooler when the pressure drop.
2. Simple selection calculation
a. Estimate the heating power of the system on the oil to determine the maximum allowable operating temperature of the oil and ambient temperature;
b. According to the principle of heat balance, the use of ‘technical parameters’ table in the formula P = K - ΔT calculated the required K value.
3. Select the specific model
According to the calculated K value and has been selected in the form of oil port, in the appropriate ‘technical parameters’ table to select the closest larger model.
Note: Due to the cooler exposed fins are easy to accumulate dirt, and the accumulation of dirt will significantly reduce the cooling effect of the cooler, therefore, if the cooler is working in the oil and dust in a more serious environment, the selection of models should be left with a larger margin.
Hints and suggestions
1. On the use of blowing or suction type fan and cooler installation location, should be mainly considered to prevent the cooler has been heated by other components of the hot air inhalation, to prevent the hot air from the cooler discharged from the normal work of the equipment and personnel as well as to ensure that the air into the air and the exhaust air free and smooth.
2. Use should avoid sudden changes in flow and pressure impact to ensure that the maximum allowable static working pressure is not exceeded. In order to ensure the safety of the work of the cooler, we recommend that the user, and the cooler in parallel with a bypass valve (check valve) directly to the tank.
3. For non-continuous design of the system under load, in order to facilitate the control of oil temperature in a reasonable range, we recommend the installation of a temperature control switch to control the rotation of the fan.
4. Due to the diversity of the working system and the complexity of the installation environment, we recommend that the user in the system design stage can consult our technical department, we would like to provide more information for your reference.

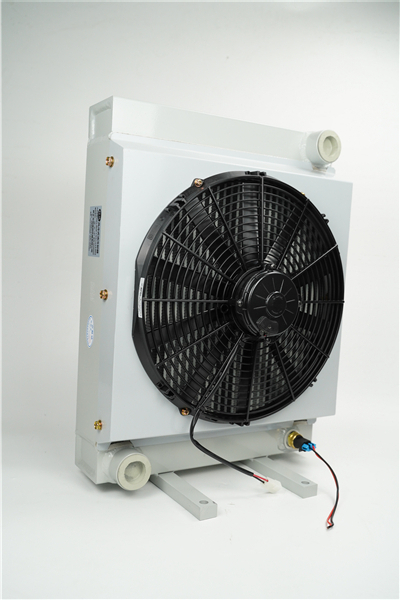

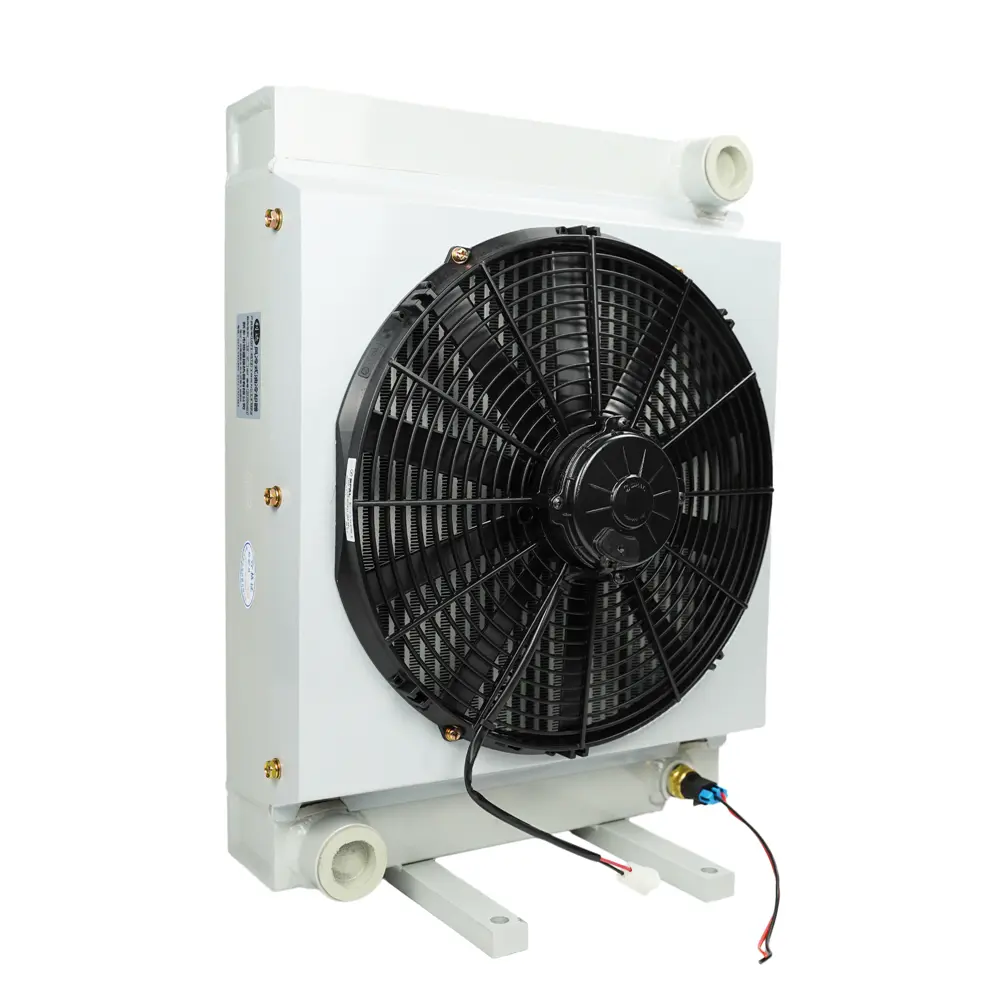

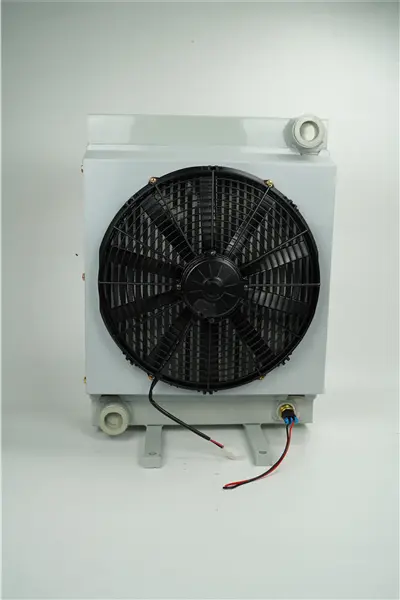

detail pictures
